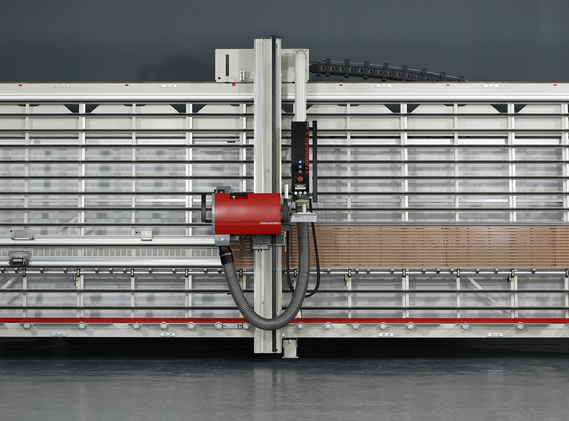

Striebig Standard S Vertical Saw

The STRIEBIG STANDARD is the world’s best selling vertical panel saw. The new STANDARD S builds on that success, retaining proven features and integrating new elements. With the STANDARD S, Striebig are adding a new dimension to the world of manually operated vertical panel saws. Two versions, an optional Comfort package that includes all the most in demand extra features and more than 20 additional options and accessories raise the STANDARD S to a different level.

Description

Striebig Standard S Vertical Saw


The Saw Beam- Guarantees anglular accuracy and robustness.  The saw beam’s steel construction is particularly stable and durable. Its twin locking feature provides perfect angular accuracy for panel sawing. It ensures that the cutting precision of the STANDARD S is retained for many, many saw cuts. The standard strip cutting gauge facilitates repeat cutting.


The panel sawing unit - Robust mounting, powerful drive


The saw motor is high-performance and powerful, 5.5 kW (7.5 hp). The guides have zero-play and are free-moving. In conjunction with the robust mounting of the motor carriage, this ensures effort-free and precise operation. The saw has an 80mm cutting depth as standard.


The saw frame - strong and stable


Self-supporting, welded and rigid, the saw frame is the heart of every Striebig panel saw. The upper guide rail, central support and roller support are 100% parallel to each other. This ensures long-term cutting precision and an excellent degree of protection for your investment.


Key Features

  • Powerful, high-torque 5.5kW motor with 300mm blade and 80mm cutting depth

  • Nine standard frame sizes available to suit most materials, as well as special sizes for larger panels

  • Scoring saw unit available

  • Strip cutting gauge for problem-free strip cutting

  • Choose from two frame types and a huge range of options to build a saw to meet your needs

  • Fully CE approved

  • Welded, torsionally rigid frame with hardened guides for long-term accuracy

  • Exceptionally stable beam construction for a machine accuracy of ±0.1 mm

  • Ergonomic design with user friendly, functional saw head controls

  • Free running, durable support rollers, mechanically braked for extra safety

  • Automatically moving rear panel support for prevention of damage

  • Central support (up to 5.15 m long) at optimum working height

  • Manual stop bar for pre-set horizontal cutting

  • Power, smooth running 5.5 kW motor (7.5 HP) with electromagnetic brake

  • Super-silent noise damping

  • 300 mm TCT saw blade giving a maximum 80 mm cut depth

  • Improved dust collection with two fixed connections

  • Strip cutting attachment for repeat horizontal cutting


*NEW* Free standing installation as standard, wall mounting also possible

*NEW* Scoring saw available as an option

Special frame sizes available on request.


Type        Cutting Range

6224        5300 x 2240 x 80

6216        5300 x 2160 x 80

6168        5300 x 1680 x 80

5224        4300 x 2240 x 80

5216        4300 x 2160 x 80

5168        4300 x 1680 x 80

4224        3300 x 2240 x 80

4216        3300 x 2160 x 80

4168        3300 x 1680 x 80


Optional Extras

  • Wooden backing for exceptional panel support

  • ProLock quick tool change system

  • Digital Measuring System (DMS) for x-axis

  • Comfort package (incl. DMS for y-axis, pneumatic roller locking, auto carriage

  • lock with fine adjustment, laser cut ine indicator for horizontal cut)

  • VSA scoring saw unit

  • Wooden small piece supports (right side of machine)

  • Laser cut line indicator (horizontal cuts)

  • Aluminium small-piece supports

  • Two speed motor (Incl. ProLock quick tool change system)

  • Depth stop for grooving tool

  • Adjustable width trenching tool (wood-based panels only)

  • ACM grooving accessory and tools
